P1SB
Explore P1SB, a cutting-edge platinum-cured silicone hose designed to meet the diverse needs of the food, pharmaceutical, biotech, and cosmetic industries. Purity One™ hoses are meticulously crafted to provide optimal performance in a wide range of high purity applications. With a focus on quality, durability, functionality, and customer service, these hoses ensure reliable fluid handling and transport.
CONFIGURE YOUR CUSTOM
HOSE SOLUTION NOW
Try our custom hose configurator! This design tool allows you to diaphragm your assembly and send it directly to our experts!

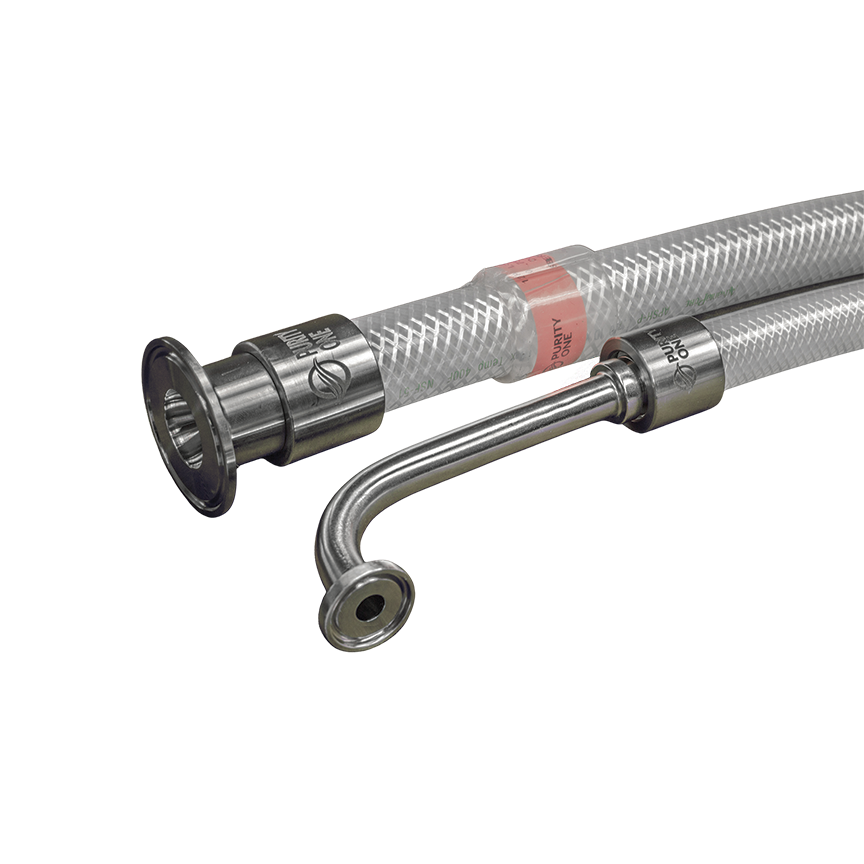

PLATINUM-CURED BRAIDED SILICONE HOSE
Item #P1SB
TALK TO AN EXPERT
Tell us where you’d like to make improvements to your process and we’ll help you find the right solution to address your unique needs.
FEATURES
- Biopharmaceutical grade platinum-cured silicone
- Temperature range: -100°F (-73.3°C) to 400°F (204.4°C)
- Resists temperature extremes, compression set, chemical attack, moisture and environmental exposure
- It may be washed with any mild detergents
- Sterilizable by autoclave, CIP, SIP, and Gamma Irradiation
- Purity One™ hose traceable with serial and lot numbers
- Purity One™ labeling system available
- 1-year warranty
- Purity One™ hose measuring system (available upon request)
- 24-hour emergency service available
CONSTRUCTION
- Piles of synthetic cord.
- Platinum-cured silicone rubber, pharmaceutical and food quality, light color, odorless and tasteless, mirror smooth
APPLICATIONS
- Silicone hose for delivery of high purity products, food products, and fluids with alcohol content up to 96%
- Normally used in pharmaceutical, food, and cosmetic industries
- CIP, SIP, Process Applications
CERTIFICATIONS
- Purity One™ Certificate of Conformance and test results with each order
- In Compliance; FDA, EU Food, USP Class VI, EN;16643 & Material Certification
- Free from animal derived ingredients, phthalates, adipates, nitrosamines
FITTINGS
- Sanitary, EP
- Flange
- Pipe Thread
- Cam Lock
- Quick Disconnects
- Others (available upon request)
| PRODUCT NUMBER | NOMINAL I.D. | O.D. | WORKING PRESSURE AT 70°F (21.1°c) | BURST PRESURE AT 70°F (21.1°C) | MINIMUM BEND RADIUS | WEIGHT PER FOOT/METER | max length | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (psi) | (bar) | (psi) | (bar) | (in) | (mm) | (gr/m) | (lb/ft) | (m) | |
| P1SB-0250 | 0.250 | 6.35 | 0.513 | 13.03 | 217.56 | 15 | 652.67 | 45 | 1.57 | 40 | 124 | 0.08 | 25 |
| P1SB-0375 | 0.375 | 9.52 | 0.643 | 16.32 | 174.05 | 12 | 522.14 | 36 | 1.97 | 50 | 175 | 0.12 | 25 |
| P1SB-0500 | 0.500 | 12.70 | .791 | 20.10 | 145.04 | 10 | 435.11 | 30 | 2.56 | 65 | 237 | 0.16 | 25 |
| P1SB-0750 | 0.750 | 19.05 | 1.099 | 27.91 | 116.03 | 8 | 348.09 | 24 | 3.15 | 80 | .415 | 0.28 | 25 |
| P1SB-1000 | 1.000 | 25.40 | 1.358 | 34.50 | 72.52 | 5 | 217.56 | 15 | 4.72 | 120 | 513 | 0.34 | 10 |
