SMOOTH FLEX ONE
Item #P1SFO

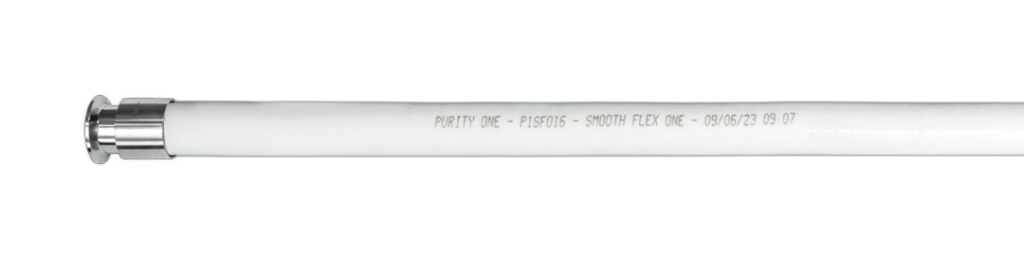

Explore P1SFO, a cutting-edge PTFE hose with a platinum-cured silicone jacket designed to meet the diverse needs of all industries. Purity One™ hoses are meticulously crafted to provide optimal performance in a wide range of applications. With a focus on quality, durability, functionality, and customer service, these hoses ensure reliable fluid handling and transport.
- Available Now!
- Fast Delivery
- Concept to Quote in 24 Hours
- Custom Labeling Options
FEATURES
- Platinum-cured silicone cover
- Available in lengths up to 100ft
- Temperature range: -76°F to 500°F (-60°C to 260°C)
- Resists temperature extremes, compression set, chemical attack, moisture and environmental exposure
- Sterilizable by autoclave, CIP, and SIP
- Purity One™ hose traceable with serial and lot numbers
- Purity One™ labeling system available
- 1-year warranty
- Purity One™ hose measuring system (available upon request)
- 24-hour emergency service available
APPLICATIONS
- For any industry – Pharmaceutical, biotech, food & beverage, chemical, petro-chemical, general purpose industrial, automotive OE & autosport
CONSTRUCTION
INNER LAYER
- FDA Approved Virgin or Anti-Static PTFE Tube
REINFORCEMENT
- 304 Stainless Steel Braid
OUTER LAYER
- Platinum-Cured Silicone Cover.
CERTIFICATIONS
- Purity One™ Certificate of Conformance and test results with each order
- In Compliance; FDA, EU Food, USP Class VI, EN;16643 & Material Certification
- Free from animal derived ingredients, phthalates, adipates, nitrosamines
FITTINGS
- Sanitary, EP
- Flange
- Pipe Thread
- Cam Lock
- Quick Disconnects
- Others (available upon request)
P1SFO
| PRODUCT NUMBER | NOMINAL I.D. | O.D. | WORKING PRESSURE AT 70°F (21.1°c) | BURST PRESURE AT 70°F (21.1°C) | MINIMUM BEND RADIUS | WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (psi) | (bar) | (psi) | (bar) | (in) | (mm) | (kg/m) | (lb/ft) | |
| P1SFO-0500 | 0.53 | 13.40 | 0.71 | 18.00 | 870 | 60.00 | 3481 | 240 | 1.50 | 38 | 0.26 | 0.18 |
| P1SFO-0750 | 0.75 | 19.10 | 0.95 | 24.10 | 870 | 60.00 | 3481 | 240 | 1.97 | 50 | 0.42 | 0.28 |
| P1SFO-1000 | 1.00 | 25.50 | 1.24 | 31.40 | 725 | 50.00 | 2901 | 200 | 2.76 | 70 | 0.64 | 0.43 |
| P1SFO-1500 | 1.50 | 38.10 | 1.81 | 46.10 | 580 | 40.00 | 2321 | 160 | 5.51 | 140 | 1.18 | 0.79 |
| P1SFO-2000 | 1.95 | 49.50 | 2.29 | 58.20 | 435 | 30.00 | 1740 | 120 | 11.02 | 280 | 1.72 | 1.15 |
P1SFOAS (Conductive)
| PRODUCT NUMBER | NOMINAL I.D. | O.D. | WORKING PRESSURE AT 70°F (21.1°c) | BURST PRESURE AT 70°F (21.1°C) | MINIMUM BEND RADIUS | WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (psi) | (bar) | (psi) | (bar) | (in) | (mm) | (kg/m) | (lb/ft) | |
| P1SFOAS-0500 | 0.53 | 13.40 | 0.71 | 18.00 | 870 | 60.00 | 3481 | 240 | 1.50 | 38 | 0.26 | 0.18 |
| P1SFOAS-0750 | 0.75 | 19.10 | 0.95 | 24.10 | 870 | 60.00 | 3481 | 240 | 1.97 | 50 | 0.42 | 0.28 |
| P1SFOAS-1000 | 1.00 | 25.50 | 1.24 | 31.40 | 725 | 50.00 | 2901 | 200 | 2.76 | 70 | 0.64 | 0.43 |
| P1SFOAS-1500 | 1.50 | 38.10 | 1.81 | 46.10 | 580 | 40.00 | 2321 | 160 | 5.51 | 140 | 1.18 | 0.79 |
| P1SFOAS-2000 | 1.95 | 49.50 | 2.29 | 58.20 | 435 | 30.00 | 1740 | 120 | 11.02 | 280 | 1.72 | 1.15 |
